Customisable Press Fit Step Clock Movement Kit | Fits 3.1mm & 5.0mm Hand Holes

A Customisable Clock Repair Kit

Fully customise the perfect clock repair kit you need by selecting each component! This complete press fit clock repair kit includes a stepping (ticking) press fit movement, compatible press fit hands, fittings and a hanger all as available options. Shop with confidence knowing that all components of this kit will work together perfectly, taking out the hassle of trying to replace a movement whilst keeping existing hands that might not fit. All you need to do is add each item that you require individually to your kit from the drop down menus, add the quantity, and build as necessary. As this is a press fit clock movement kit, the selected hands will press onto the shaft. Please note, you do not need to add all of the items available- for example if you do not require a hanger, simply do not select this as an option and leave the quantity as 0.

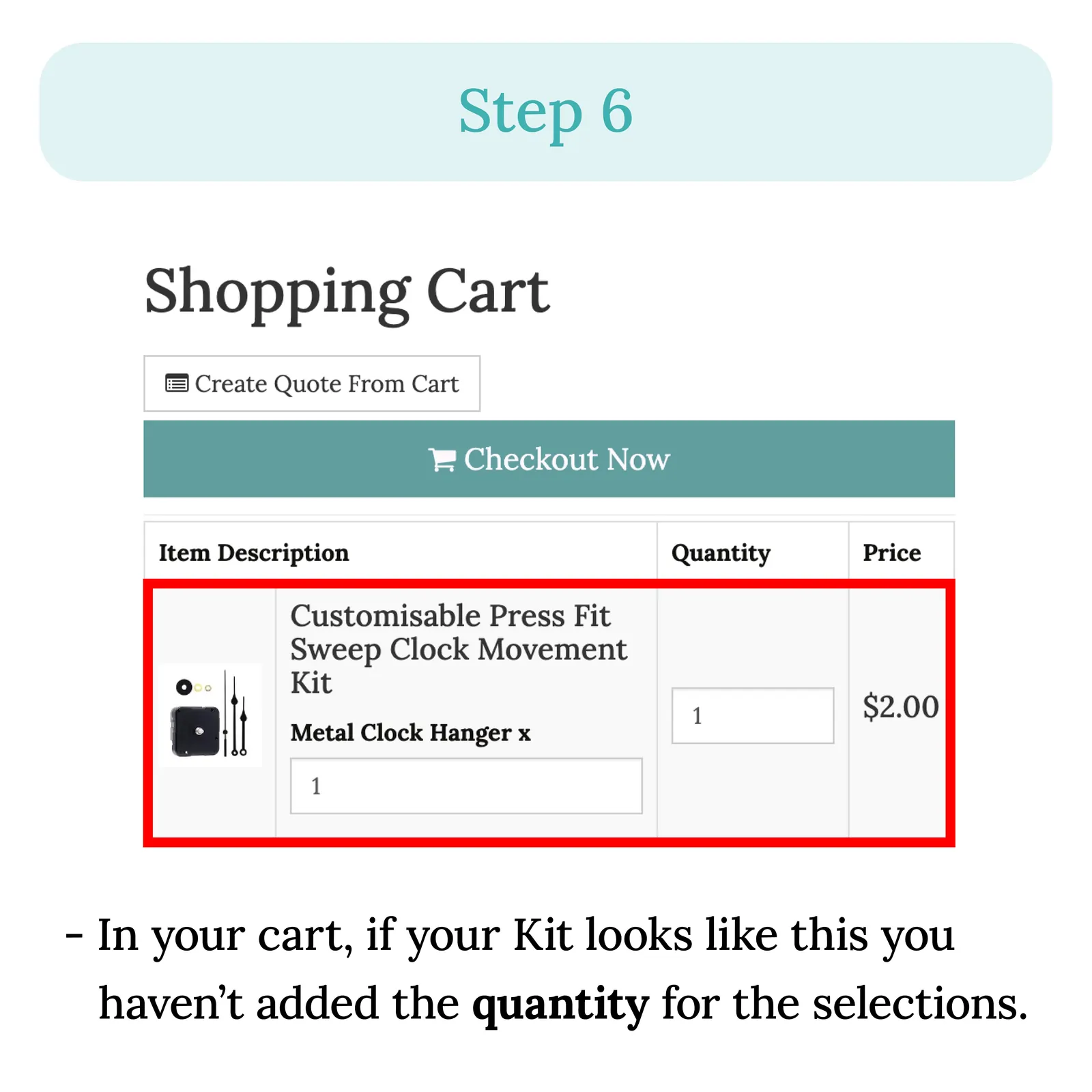

Important note: The individual items in the set are not included by default. You must select the items required, including movement & hands from their respective drop down menus, as well as the quantity required.

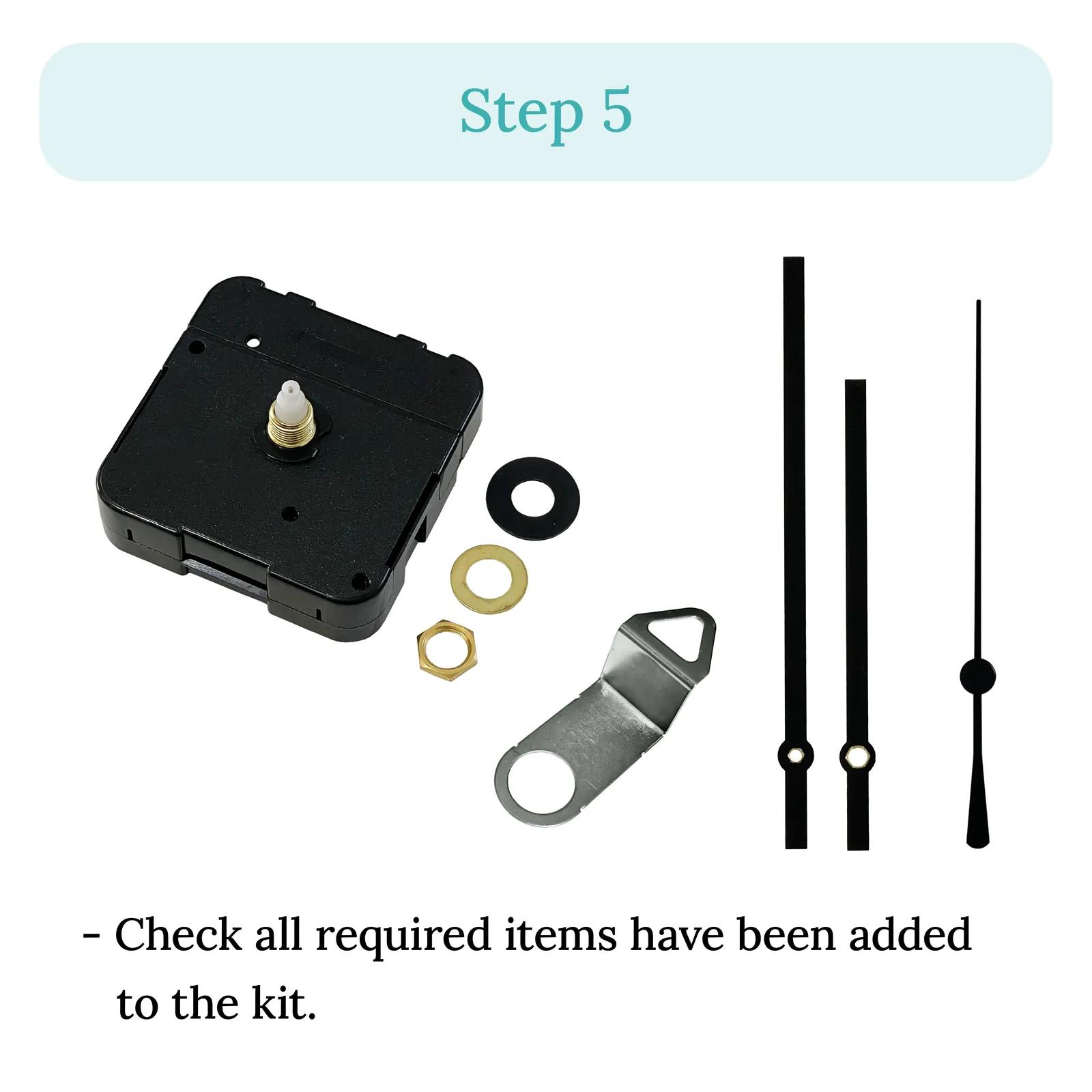

Kit Includes (All Items Optional):

1 x Stepping/ticking press fit movement- available in assorted shaft lengths (more information below)

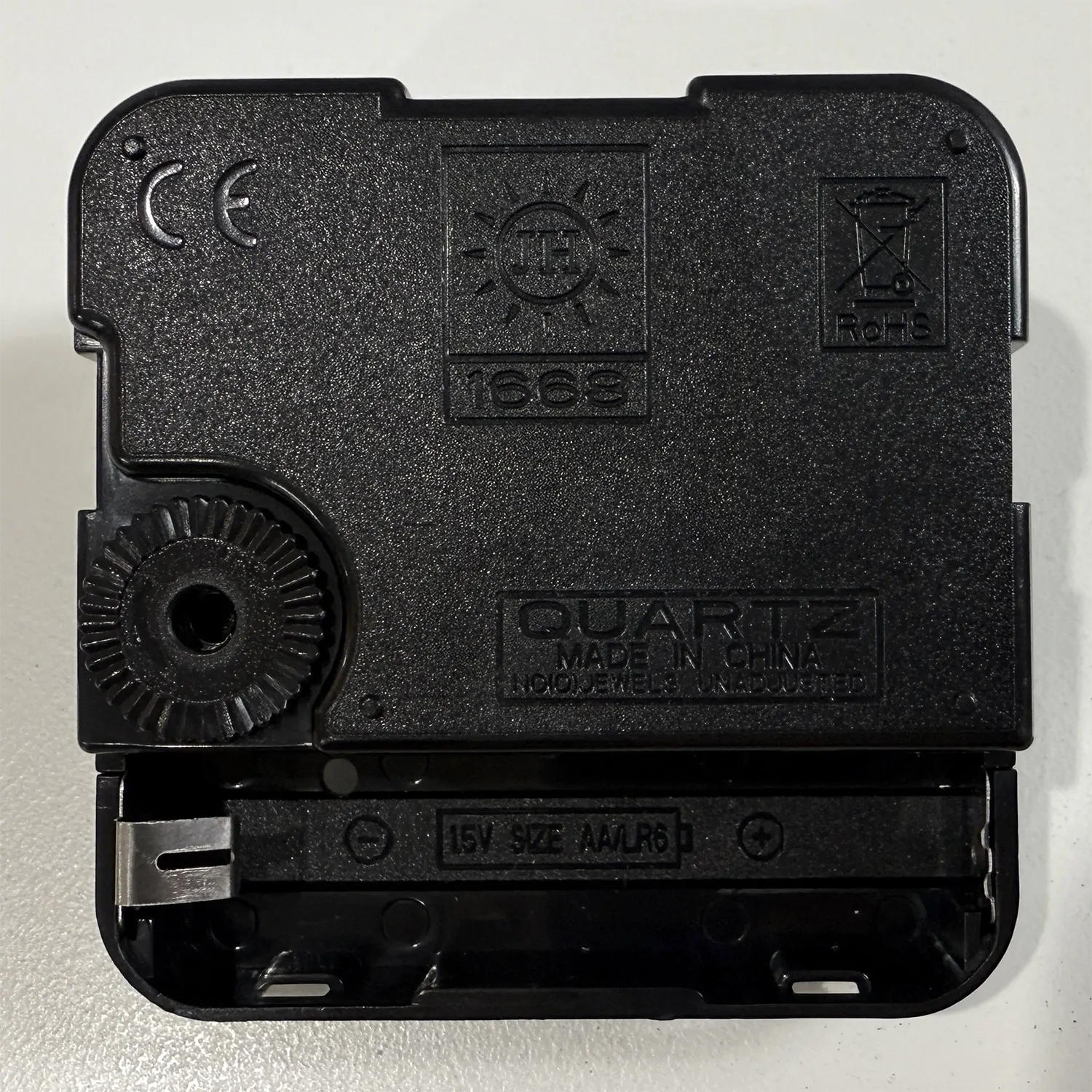

Movement measures 56 x 56 x 16mm (not including shaft length)

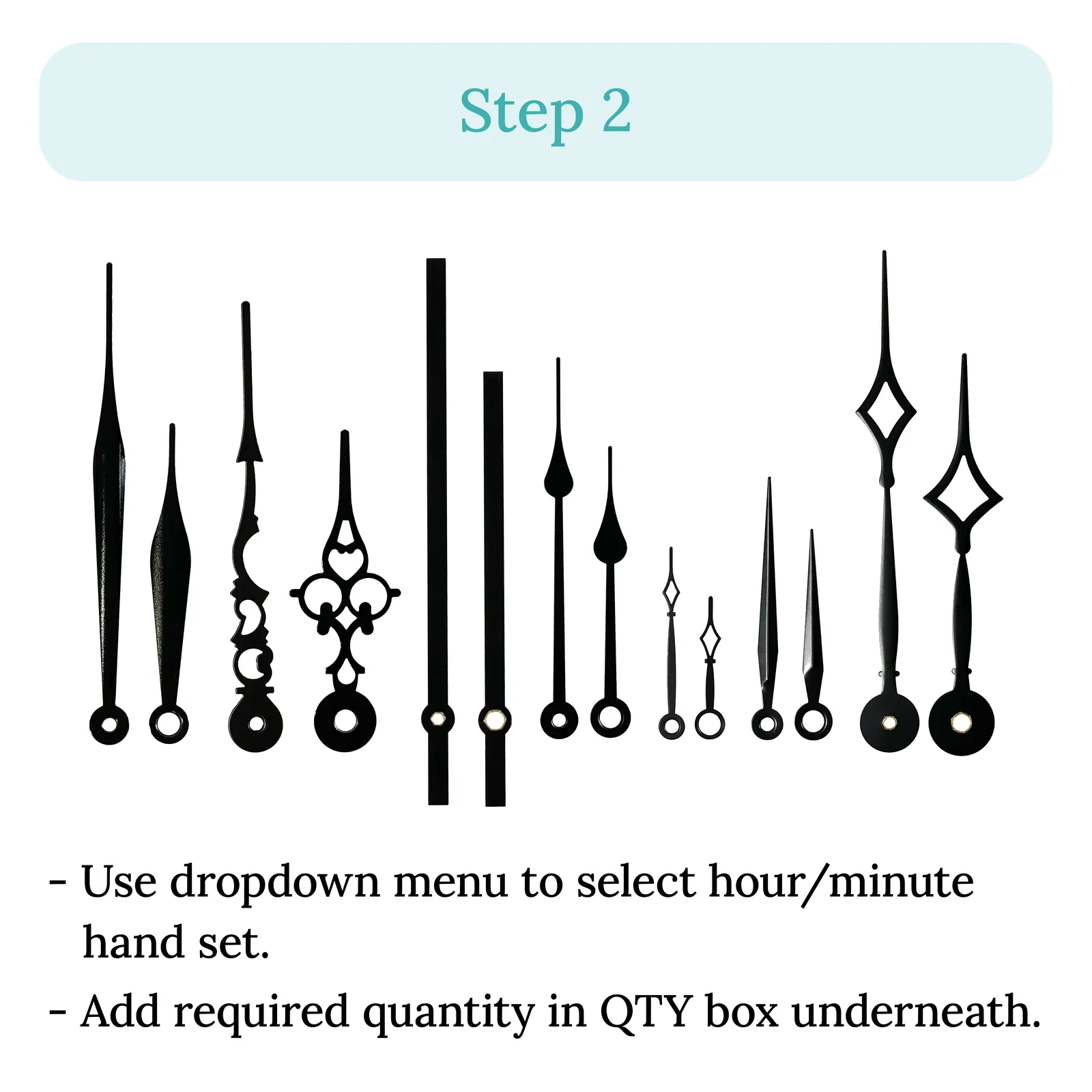

1 x set of Hour and Minute hands (press fit)- available in assorted sizes & styles

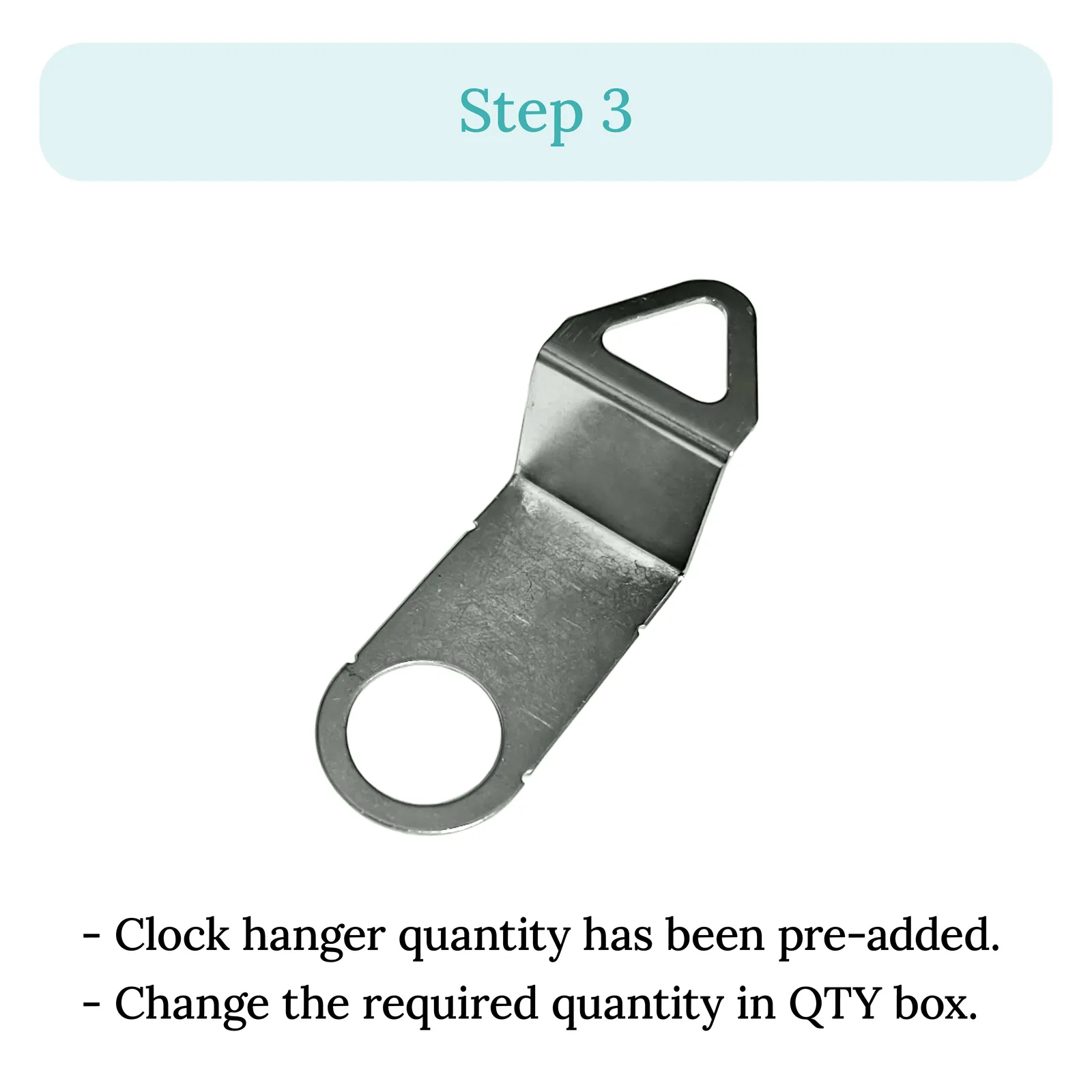

1 x Clock hanger

1 x Pack of fittings (rubber washer, brass washer, hex nut)

1 x Assembly instructions

Requires 1 x AA Alkaline battery (or LR6 Alkaline), not included.

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.

Please note, the hand hole dimensions are very specific for each type of press fit movement. These must be measured accurately to ensure they will be an appropriate fit.

These Press Fit movements/hands come in a range of designs that are compatible only with each other in this kit. Please note, these products are not compatible with our German Press Fit movements/hands, our sweep press fit movements/hands or any other type of product other than what is linked above.

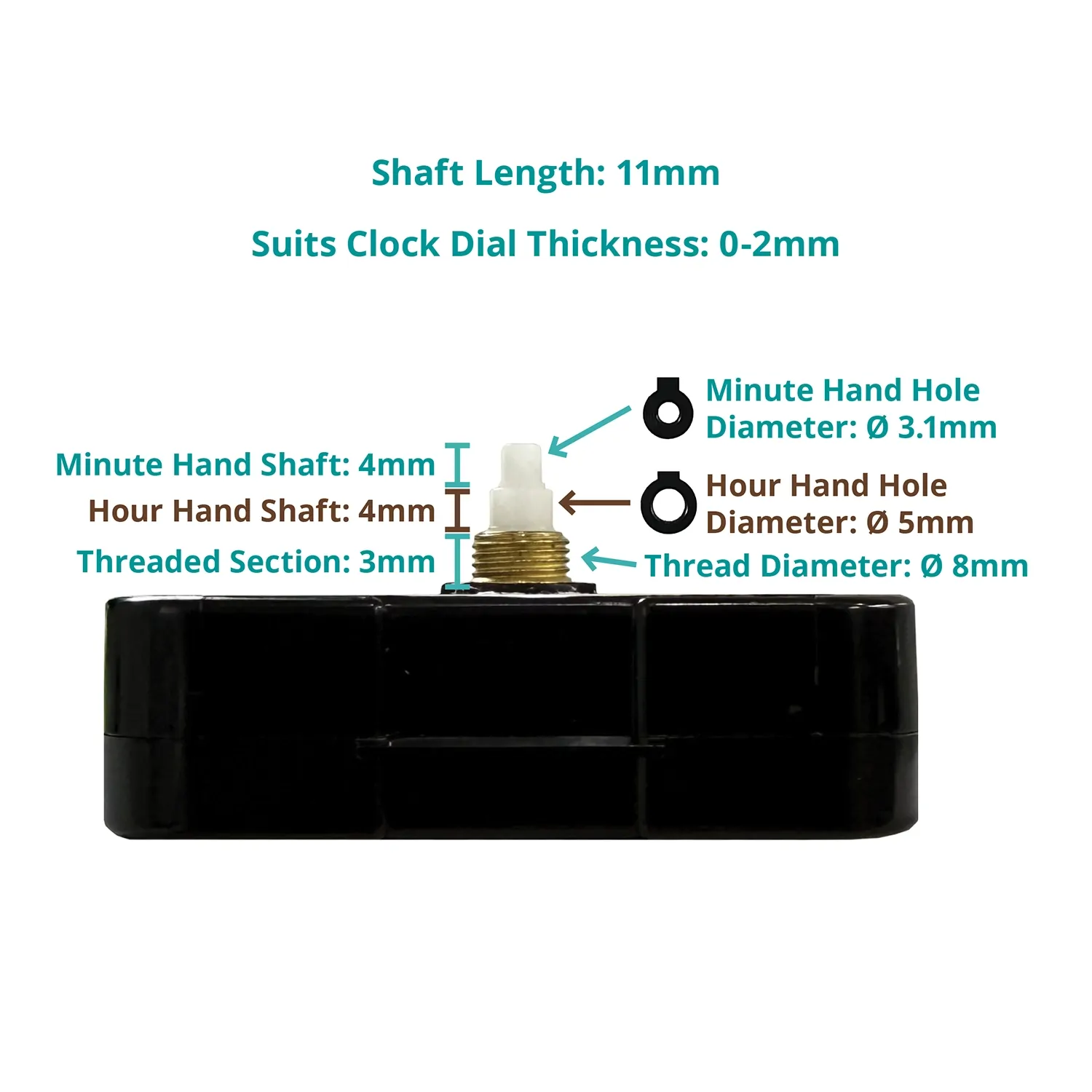

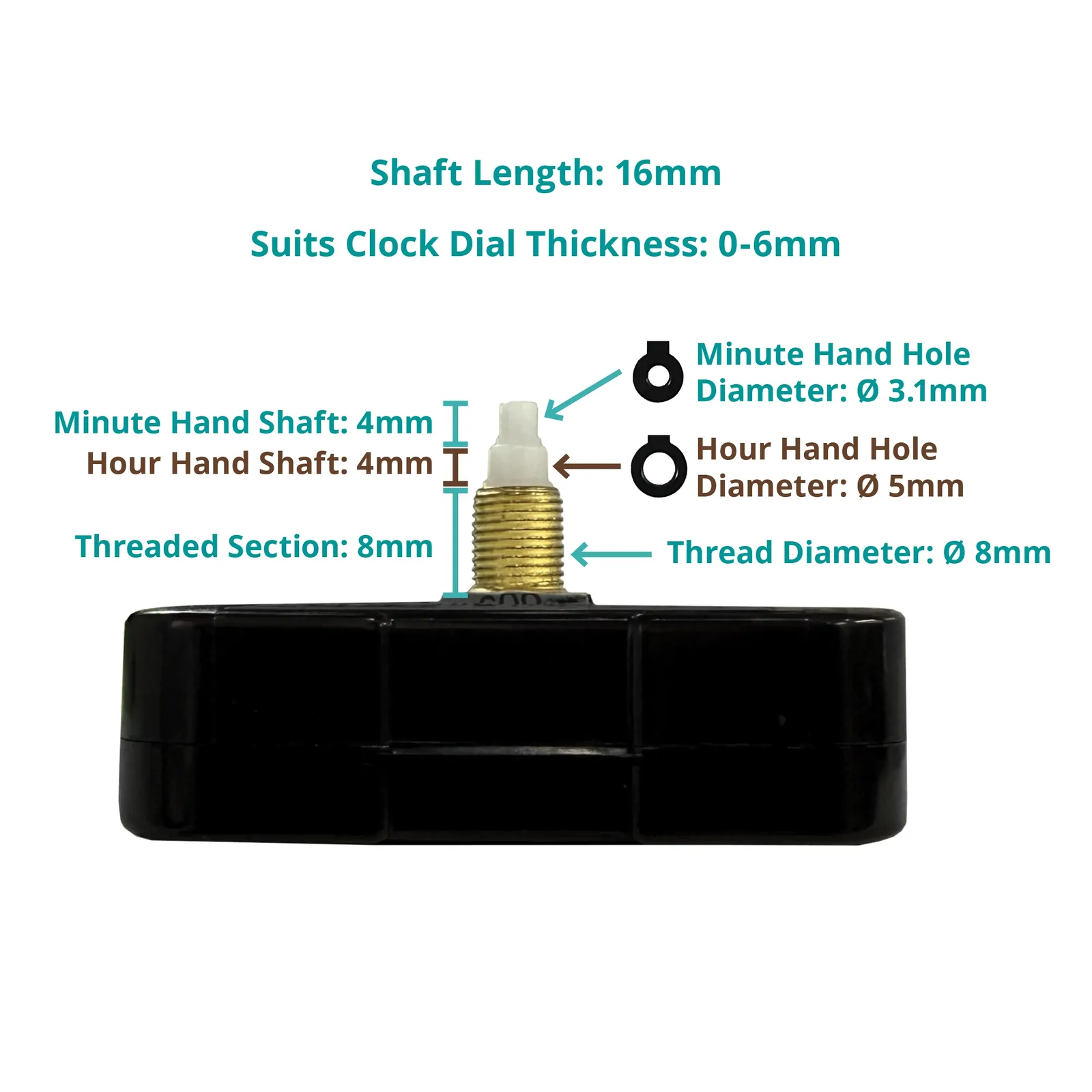

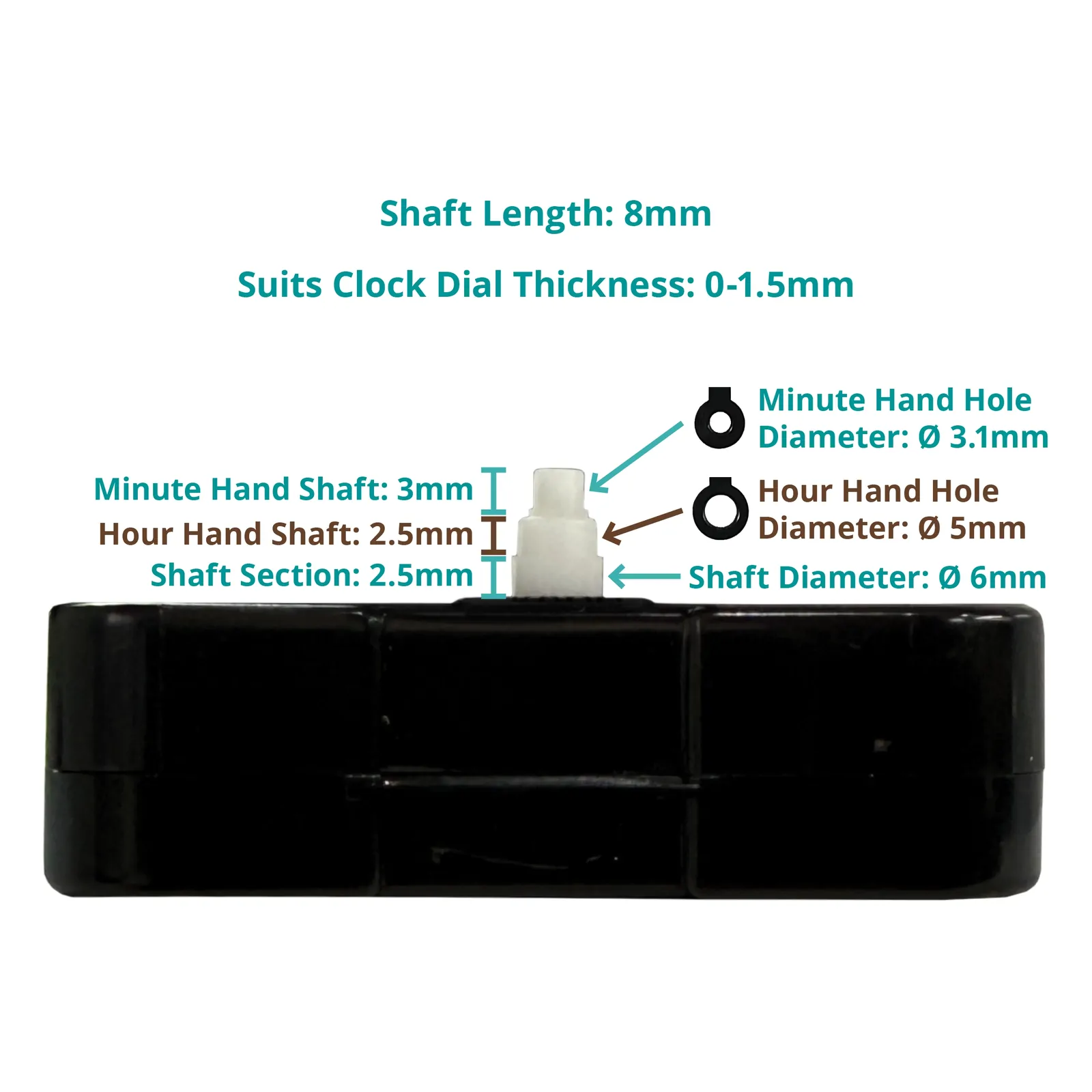

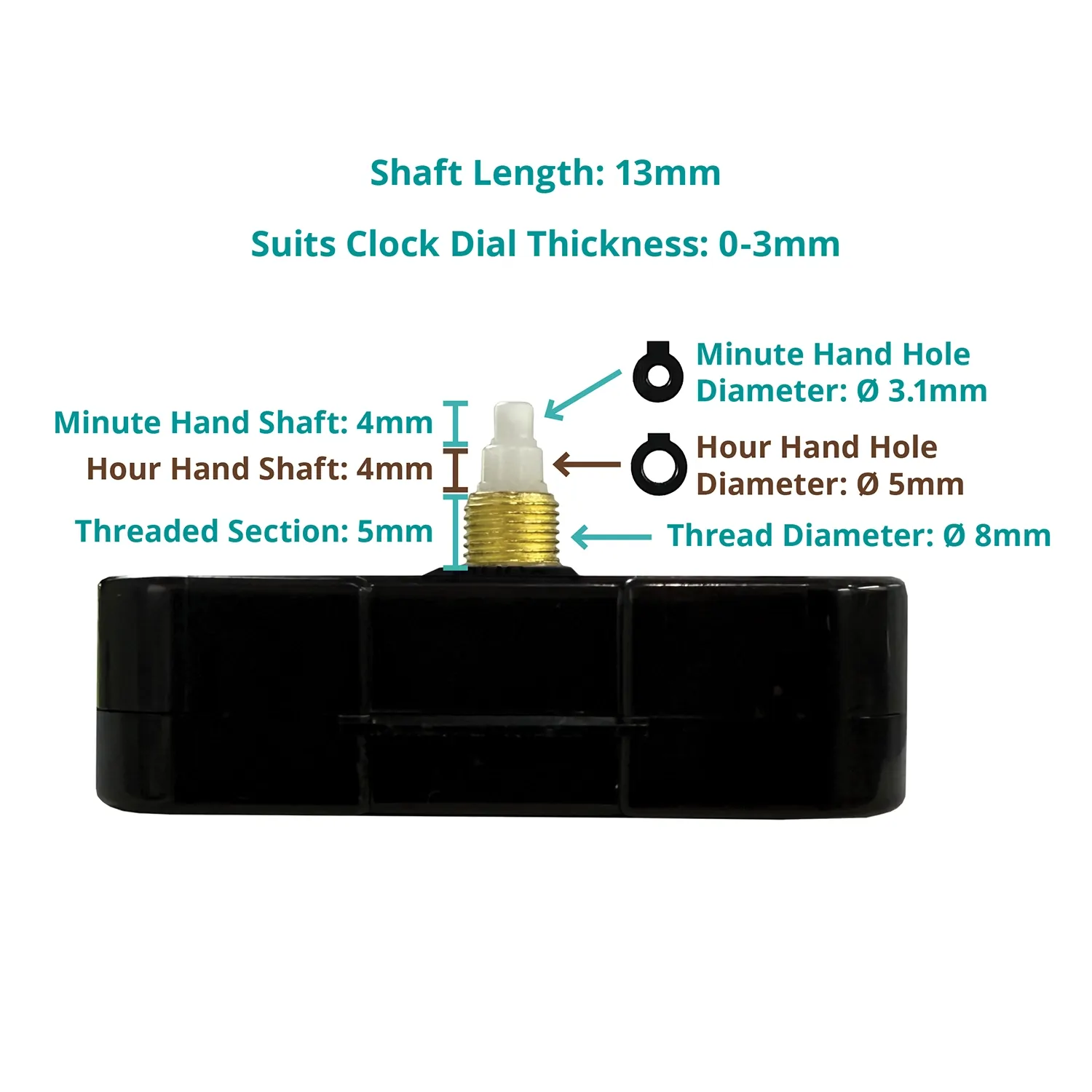

Hand Hole Dimensions (Collet)

• Minute: 3.1mm

• Hour: 5.0mm


Important note: We cannot guarantee compatibility between your existing hands or movements and our hands and movements. To avoid any issues, be sure to gather accurate measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with this movement.

What Is The Difference Between A Standard Press Fit and A German Press Fit Movement?

The main difference between a standard press fit movement and a German press fit movement comes from the hand hole dimensions which have slightly different measurements. It is important to measure your existing hand hole dimensions prior to purchasing, to ensure the movement will be a suitable replacement. In addition, the finished appearance between the two movements differs slightly- a German press fit movement uses a collar to secure the movement to a clock (which requires a slightly larger dial hole and thickness), whilst a standard press fit movement instead uses a hex nut and a brass thread. Please be sure to check the diameter of your dial hole and hand hole dimensions prior to purchasing to ensure you select the most suitable movement.

The Importance Of Getting Correct Measurements

In order to find a correct replacement, you will first need to gather a few measurements and information from your current movement. A model number alone does not provide enough information to replace a movement- you will also need to determine the following:

1. Type of movement/hands you are replacing (press fit, euro shaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

• If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
• If the hole has two straight sides and a rounded top and bottom, then your movement is a euro shaft movement
• If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your original hands may not be compatible with the replacement movement that you select. It is important that you measure the hand hole dimensions to confirm whether it is a match. If not, you can order replacement hands that will be compatible with your replacement movement.

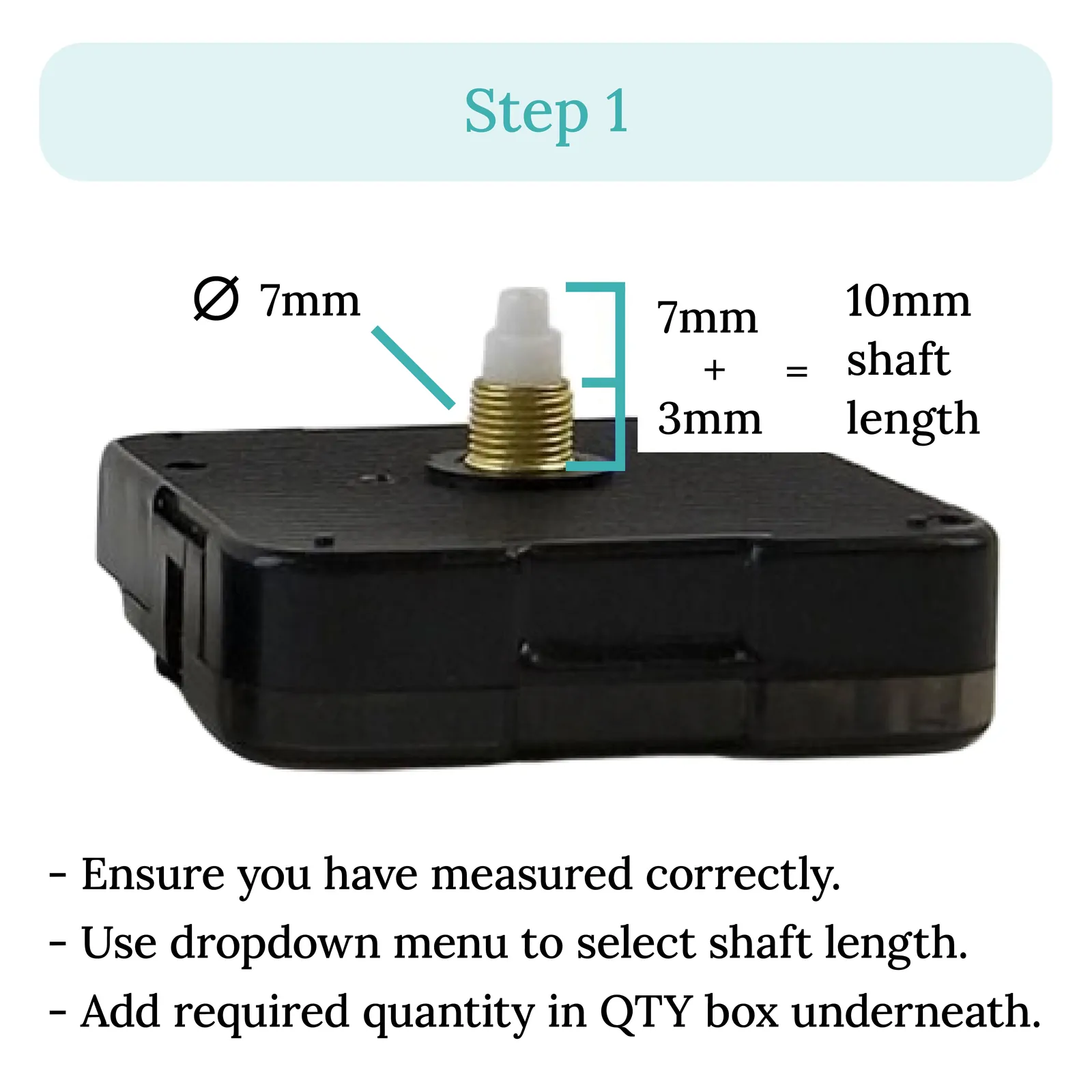

3. Total Shaft Length Of Your Current Movement

Measure the total shaft length of your old movement by measuring from the face of the movement to the very end of the shaft. This measurement is NOT just the threaded part of the shaft, it is the entire shaft. It is important to get accurate measurements especially if your clock had a lens. We also recommend measuring your dial thickness to ensure the replacement movement will be a suitable fit.

4. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.

Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
