German Pointer Press Fit Quartz Hands (37mm / 28mm) | 3.5mm & 5mm Hand Holes

German Press Fit Hands- Pointer Style

Please read all of the information in the description below carefully to ensure the hands will be an appropriate fit prior to purchasing.

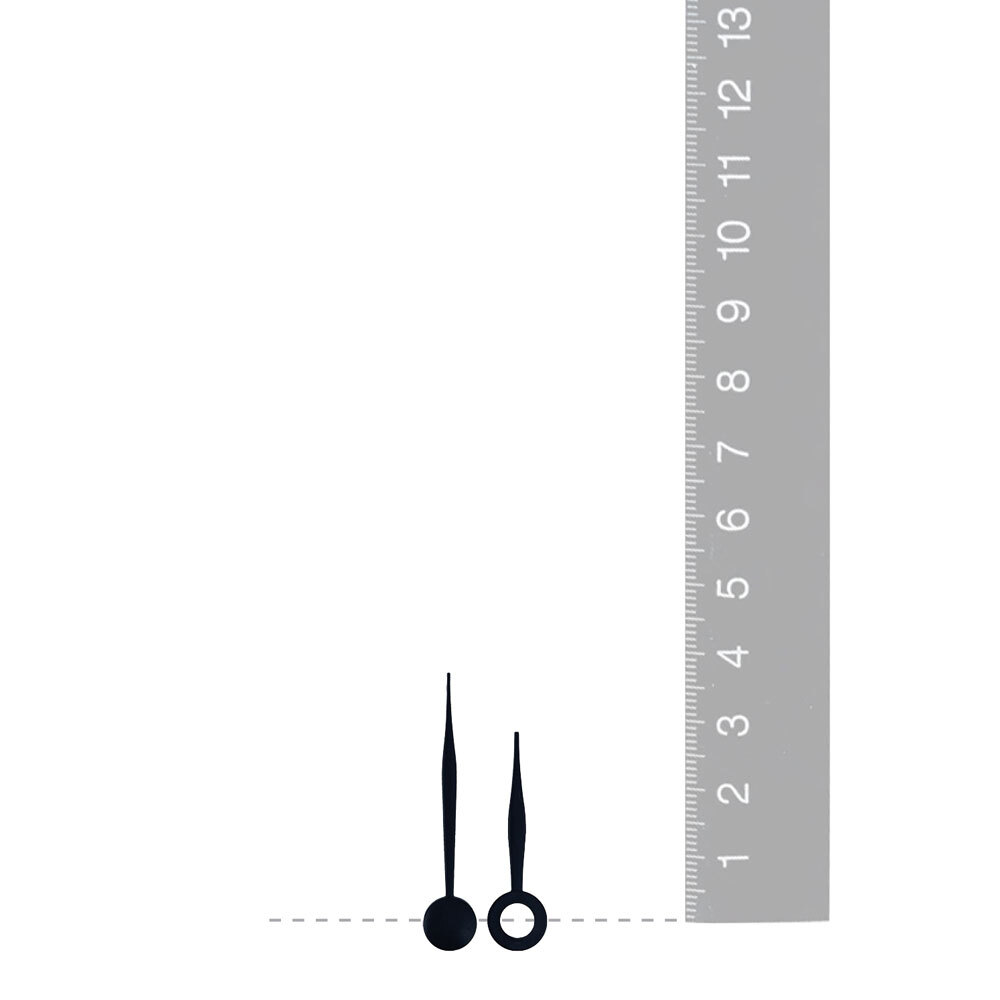

These pointer style hands feature a press fit design (both the hour and minute hand will push on to the movement shaft), where the hour hand measures 28mm in length, and the minute hand measures 37mm in length. These hands are compatible with our German Press Fit Clock Movements only, available to view HERE. They will not be suitable for our standard press fit clock movements.

Important Note: the total length of the hands are measured from the centre of the hole to the tip, not from end to end.

Please also note: A seconds hand cannot be used with this set of hands as the minute hand has a solid (closed) centre

Hand Specifications:

1 x pair German hands (pointer style)

Press fit design (both the hour and minute hand will push on to the movement shaft)

1 x Black hour hand measures 28mm in length

1 x Black minute hand measures 37mm in length

Material: plastic

Hand Hole Dimensions (Collet)

• Minute: 3.5mm
• Hour: Ø5mm

Important note: We cannot guarantee compatibility between your existing hands/movement, and our hands/movements. To avoid any issues, be sure to gather accurate hand hole measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with these hands.

What Is The Difference Between Standard Press Fit and German Press Fit Hands?

The main difference between standard press fit and German press fit hands comes from the hand hole dimensions which have slightly different measurements. It is important to measure your existing hand hole dimensions prior to purchasing, to ensure the movement will be a suitable replacement. In addition, the finished appearance between the two movements differs slightly- a German press fit movement uses a collar to secure the movement to a clock (which requires a slightly larger dial hole and thickness), whilst a standard press fit movement instead uses a hex nut and a brass thread. Please be sure to check the diameter of your dial hole and hand hole dimensions prior to purchasing.

How To Determine Which Hands You Need- Press Fit, Euroshaft or High Torque

In order to find replacement hands, you will first need to gather a few measurements and information from your current movement/or hands. You will need to determine:

1. What type of fit are your hands? (press fit, euroshaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

• If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
• If the hole has two straight sides and a rounded top and bottom, then your movement is a euroshaft movement
• If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft from the movement with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your replacement hands need to be compatible with either your original movement, or the replacement movement that you select. It is important that you measure the hand hole dimensions of your original hands to confirm whether it is a match. If these aren't available, you can measure the shaft dimensions of your original movement. In addition, the total length of the hands are measured from the centre of the hole to the tip, not from end to end.

3. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.

Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
