High Torque Dual Pendulum Clock Movement (30mm Shaft)

High Torque Dual Pendulum Quartz Clock Movement

This Euroshaft quartz clock movement features a high torque movement with basic fittings to assemble. Please read all of the information in the description below carefully to ensure the movement will be an appropriate fit prior to purchasing.

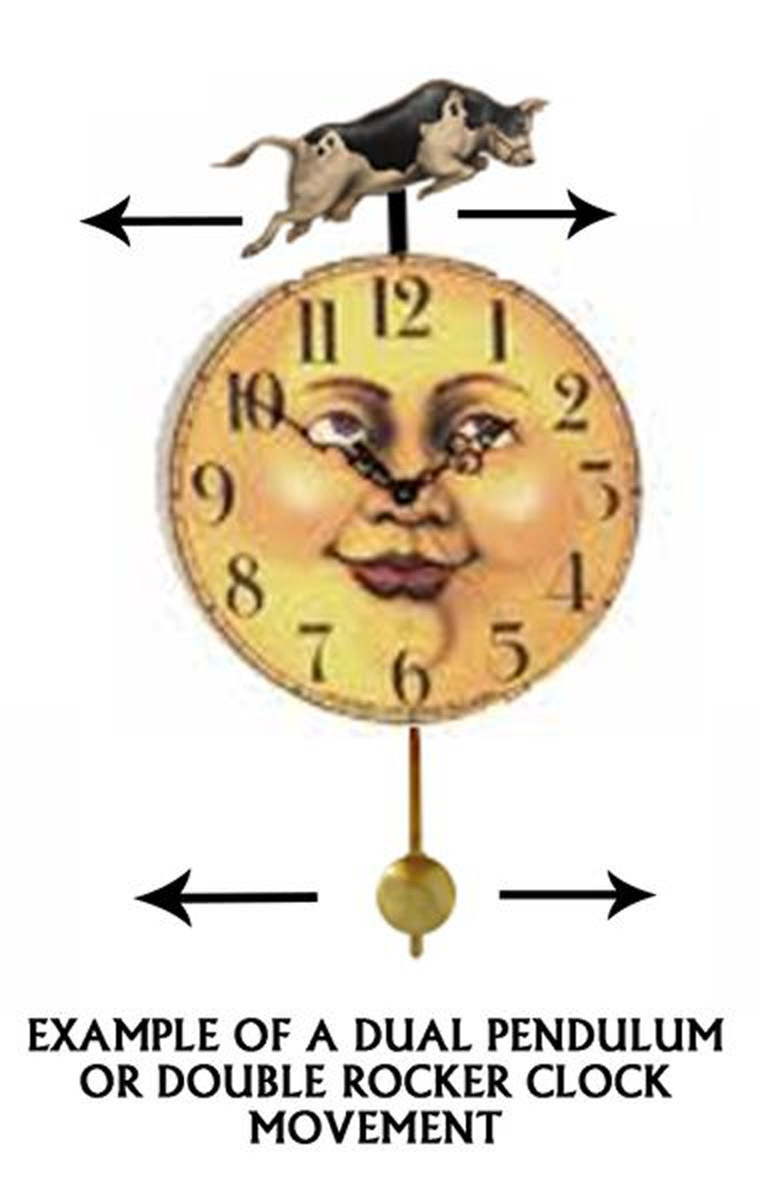

The movement has a total shaft length of 30mm and features a dual pendulum or double rocker movement, meaning that a decorative item can be placed on top, which rocks back and forth whilst swinging a pendulum below.

Important note: This is a high torque movement, which is suitable for larger clocks with minute hands that weigh over 8 grams in weight, or which measure over 160mm in length. The high torque movement works by providing extra power to drive the larger sized hands around the clock. If your minute hand weighs less than 8 grams, or measures under 160mm in length, it may be more suitable to purchase a standard compatible movement instead. This clock movement runs hands up to 38cm in length (measures from the centre of the mounting hole to the very end).

Hands are NOT included by default with this movement, however we do have compatible euroshaft high torque hands which are available to purchase seperately HERE. This movement is not suitable for push on minute hands. Please note, we do NOT recommend using a seconds hand with this movement as they can malfunction.

Important note: We cannot guarantee compatibility between your existing hands and our movements. To avoid any issues, be sure to gather accurate hand hole measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with this movement.

Supplied With:

1 x Euroshaft high torque quartz movement (30mm shaft length, with a threaded section measuring 18mm in length)

Euroshaft fit (Hour hand pushes on, minute hand fits onto a slotted rectangular shaft which is held on by a small nut) - we do NOT recommend using a seconds hand with this movement as they can malfunction

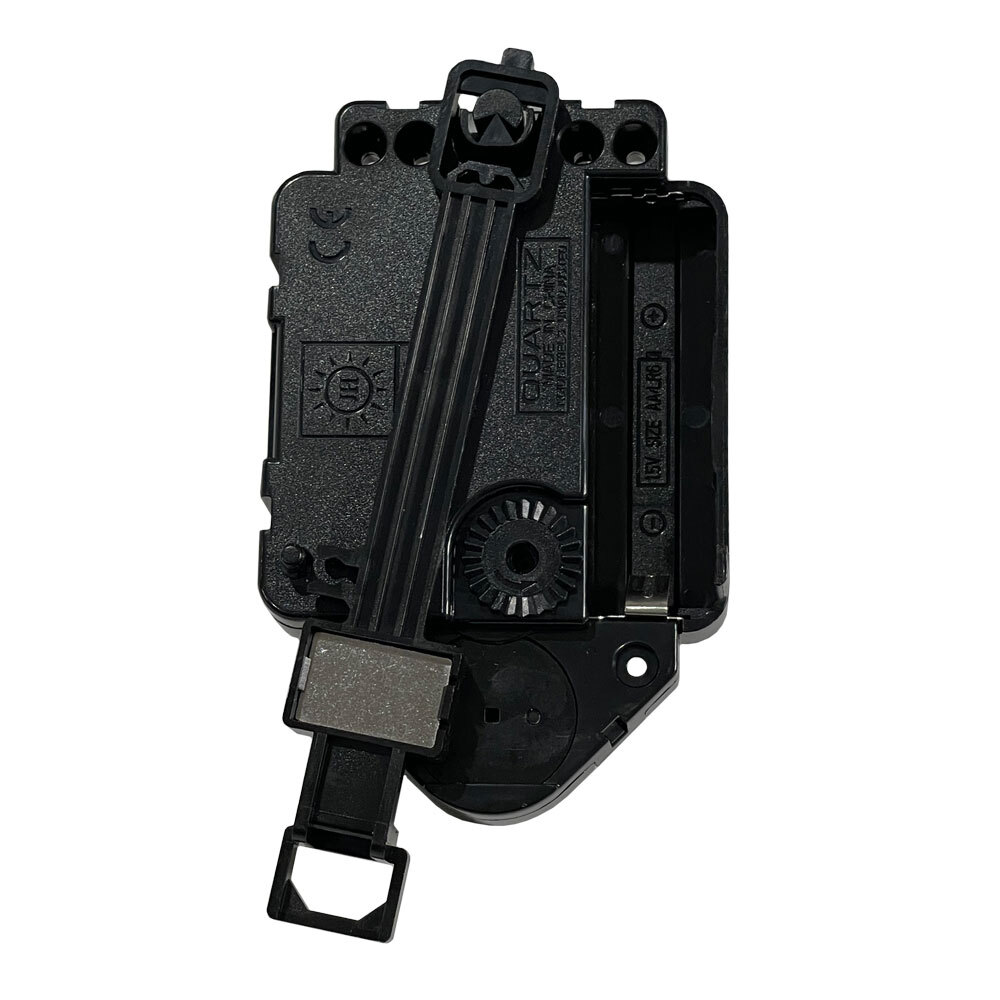

Movement measures 56 x 107 x 16mm (not including shaft length)

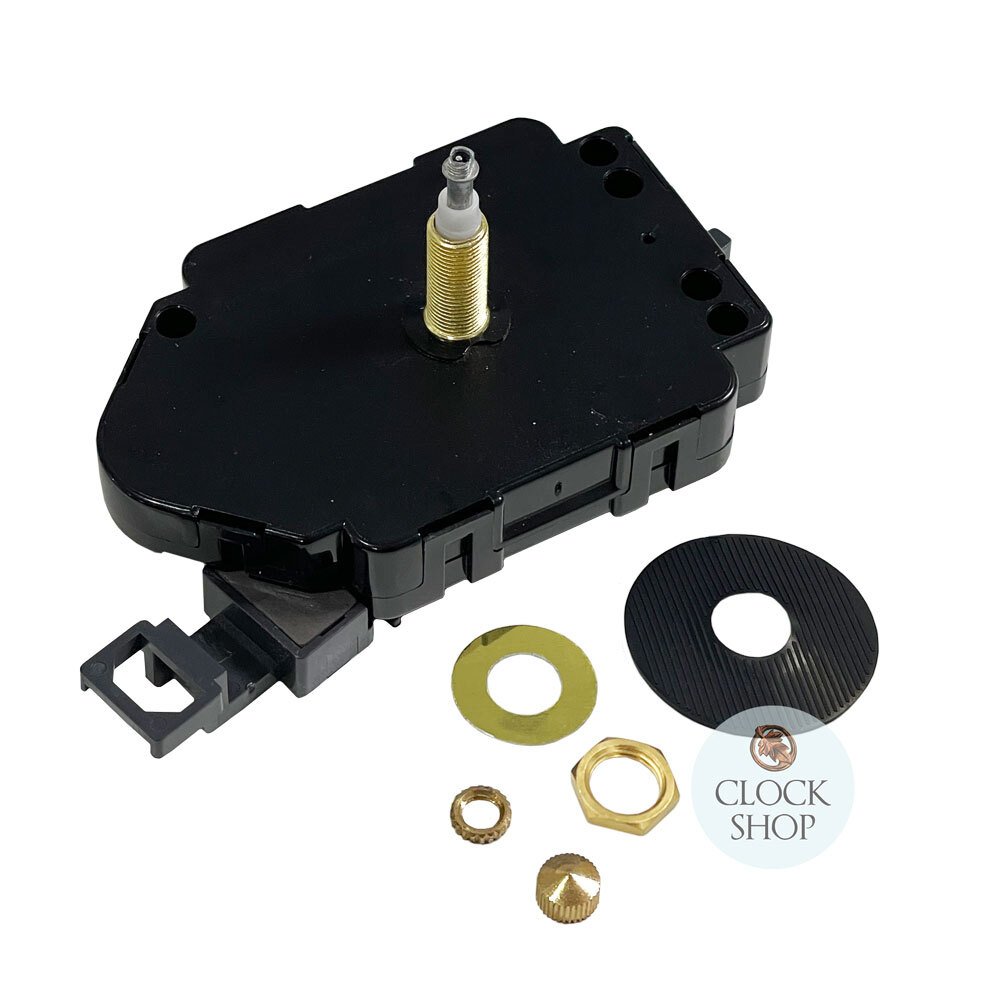

1 x Pack of fittings (rubber washer, brass washer, hex nut, closed minute hand nut & open minute hand nut)

1 x Assembly instructions

Extended ‘I’ Shaft for extra spacing between hands to prevent rubbing

Rear Hand Set Knob

Runs up to a 68cm long battery pendulum

Requires 1 x AA Alkaline battery (or LR6 Alkaline), not included

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.

The Importance Of Getting Correct Measurements

In order to find a correct replacement, you will first need to gather a few measurements and information from your current movement. A model number alone does not provide enough information to replace a movement- you will also need to determine the following:

1. Type of movement/hands you are replacing (press fit, euro shaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

• If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
• If the hole has two straight sides and a rounded top and bottom, then your movement is a euro shaft movement
• If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

 2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your original hands may not be compatible with the replacement movement that you select. It is important that you measure the hand hole dimensions to confirm whether it is a match. If not, you can order replacement hands that will be compatible with your replacement movement. In addition, the total length of the hands are measured from the centre of the hole to the tip, not from end to end.

3. Total Shaft Length Of Your Current Movement

Measure the total shaft length of your old movement by measuring from the face of the movement to the very end of the shaft. This measurement is the entire shaft length when the movement has been removed from the clock. It is important to get accurate measurements especially if your clock has a lens. We also recommend measuring your dial thickness to ensure the replacement movement will be a suitable fit.

4. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.

Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
