Press Fit Step Clock Movement | 10mm Shaft | Threaded | Fits 3.1mm & 5.0mm Hand Holes

Press Fit Step Quartz Clock Movement With Fittings

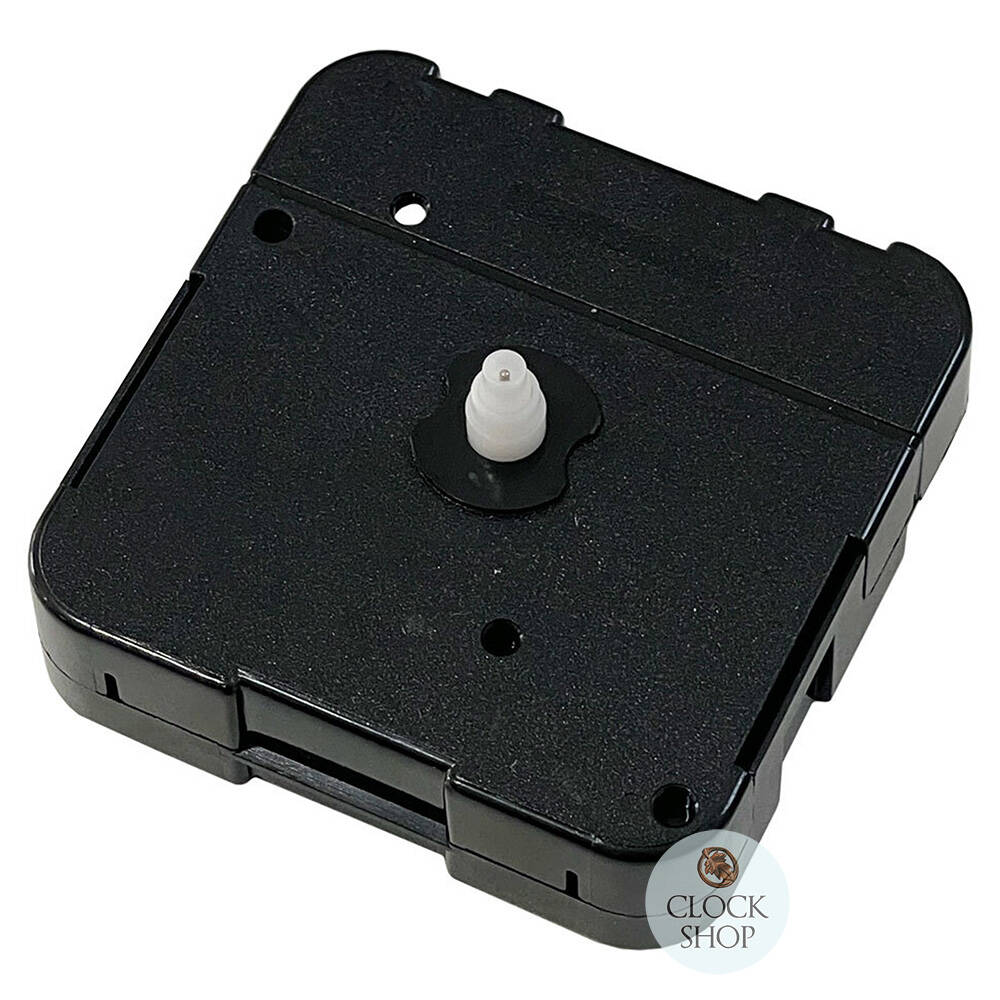

This press fit quartz clock movement includes a stepping (ticking) press fit movement with all necessary fittings to assemble together. Please read all of the information in the description below carefully to ensure the movement will be an appropriate fit, in particular the hand hole dimensions.

Important note: You must select the appropriate shaft length that you require from the drop down menu prior to purchasing. There are a number of options to choose from including:

8mm shaft (non-threaded)

10mm shaft (threaded section 3mm)

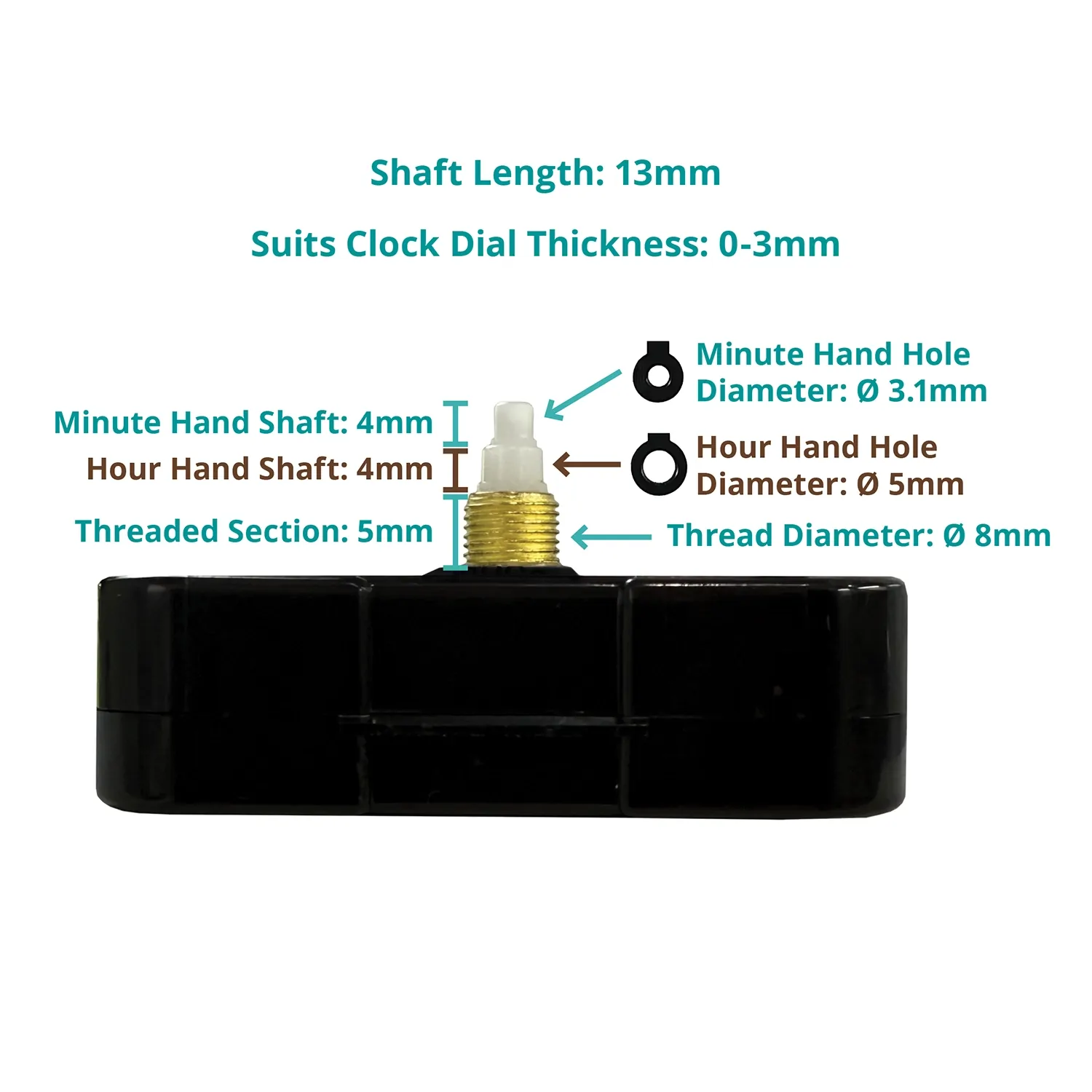

13mm shaft (threaded section 5mm)

16mm shaft (threaded section 8mm)

Included:

1 x stepping (ticking) press fit movement-available in assorted shaft lengths (more information below)

Movement measures 56 x 56 x 16mm (not including shaft length)

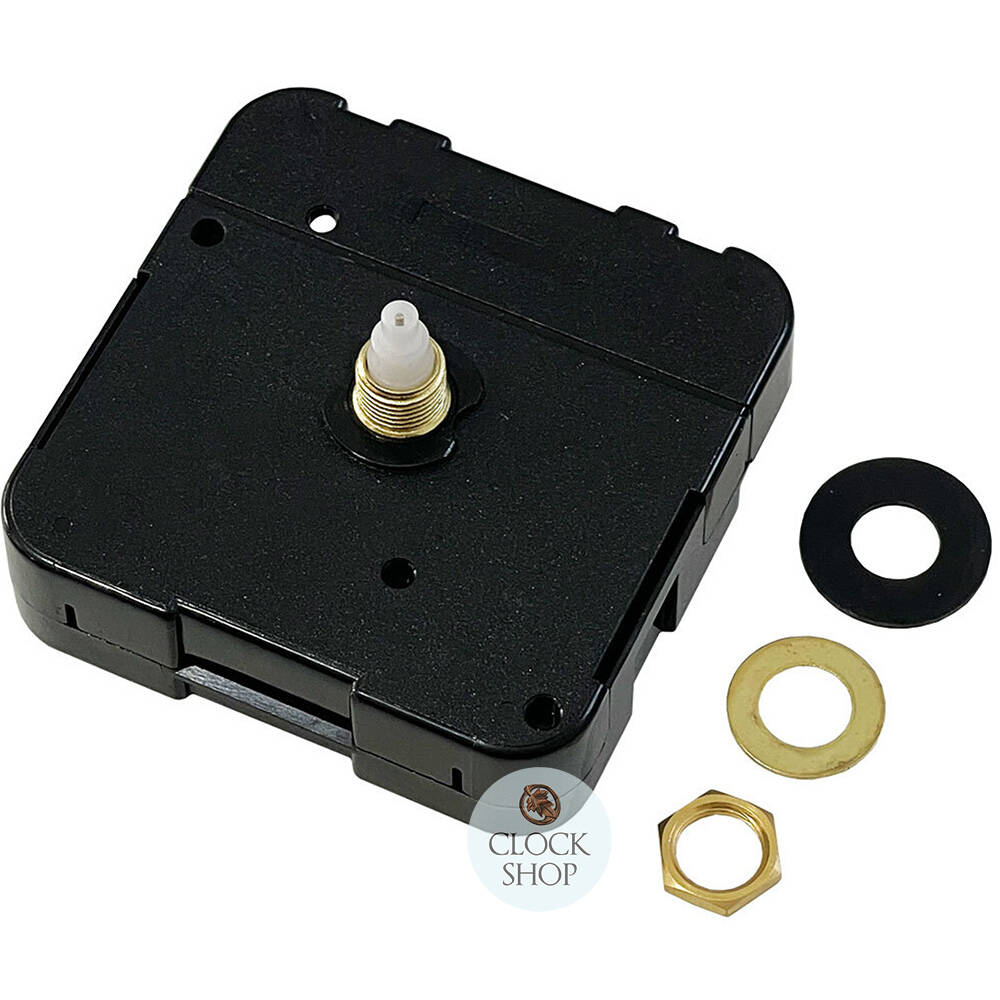

1 x Pack of fittings (rubber washer, brass washer & hex nut)

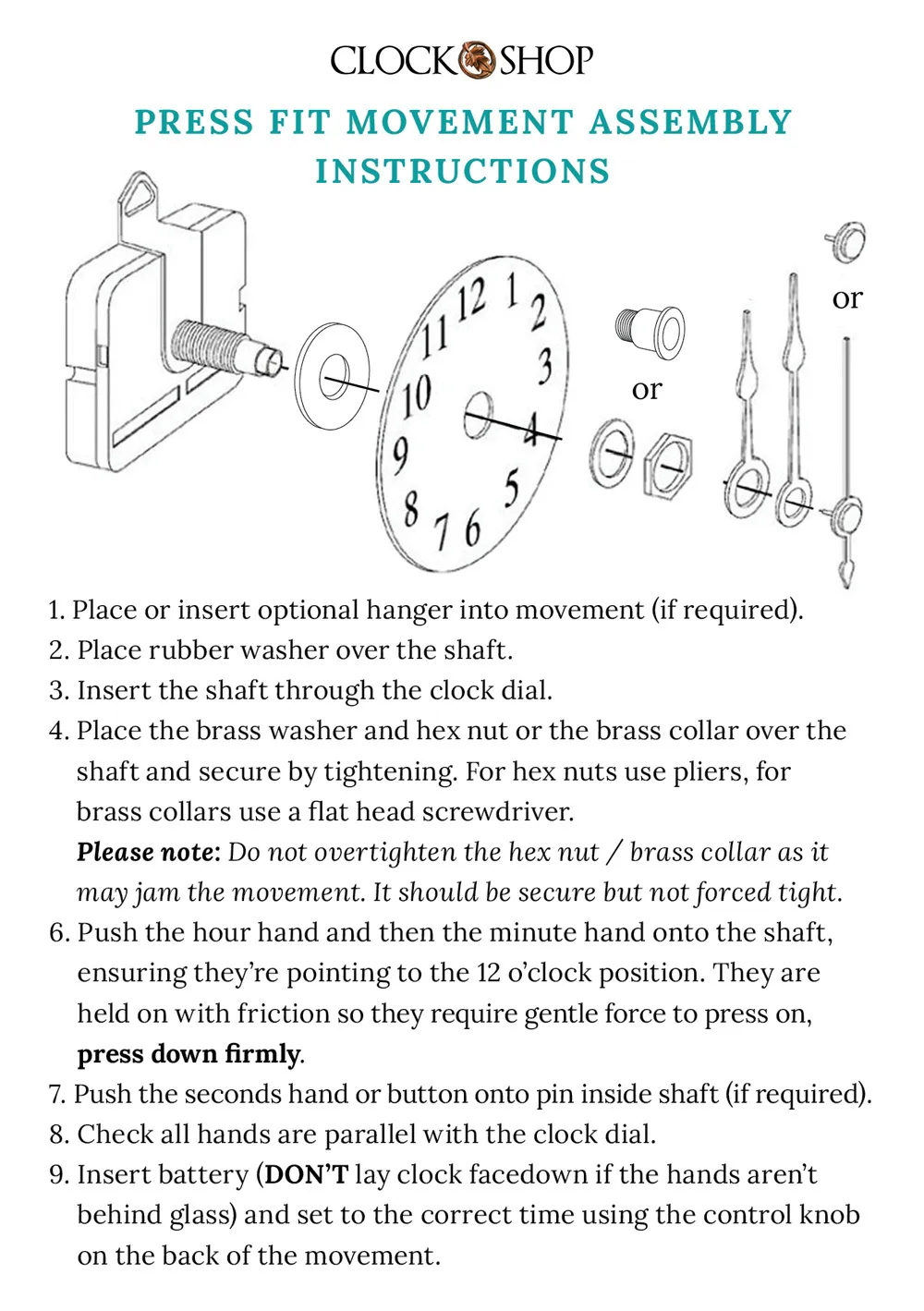

1 x Assembly instructions

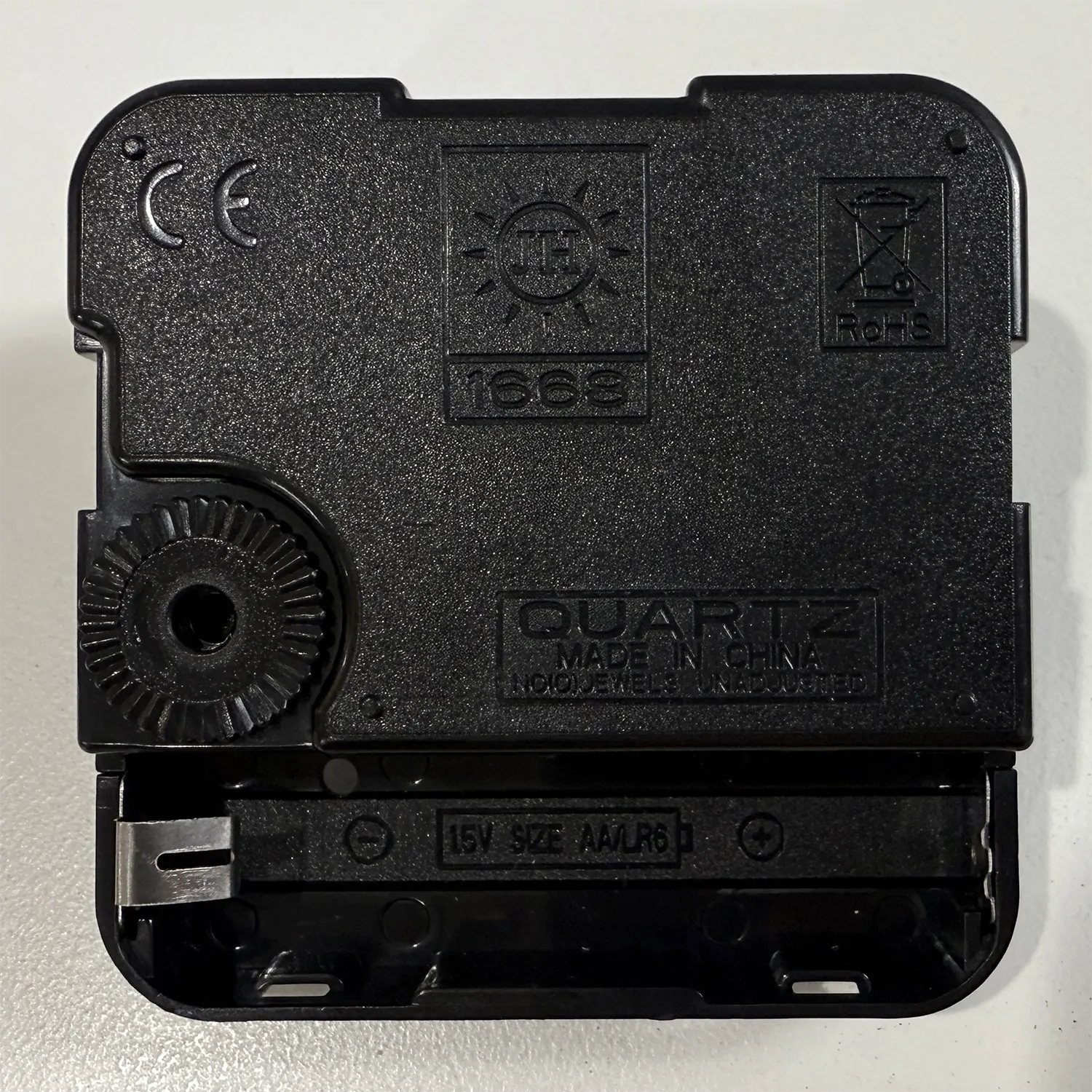

Requires 1 x AA Alkaline battery (or LR6 Alkaline), not included

There is no hanger included, if you require a hanger you can find the correct one here: Metal Clock Hanger

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.

Please note, the hand hole dimensions are very specific for each type of press fit movement. These must be measured accurately to ensure they will be an appropriate fit

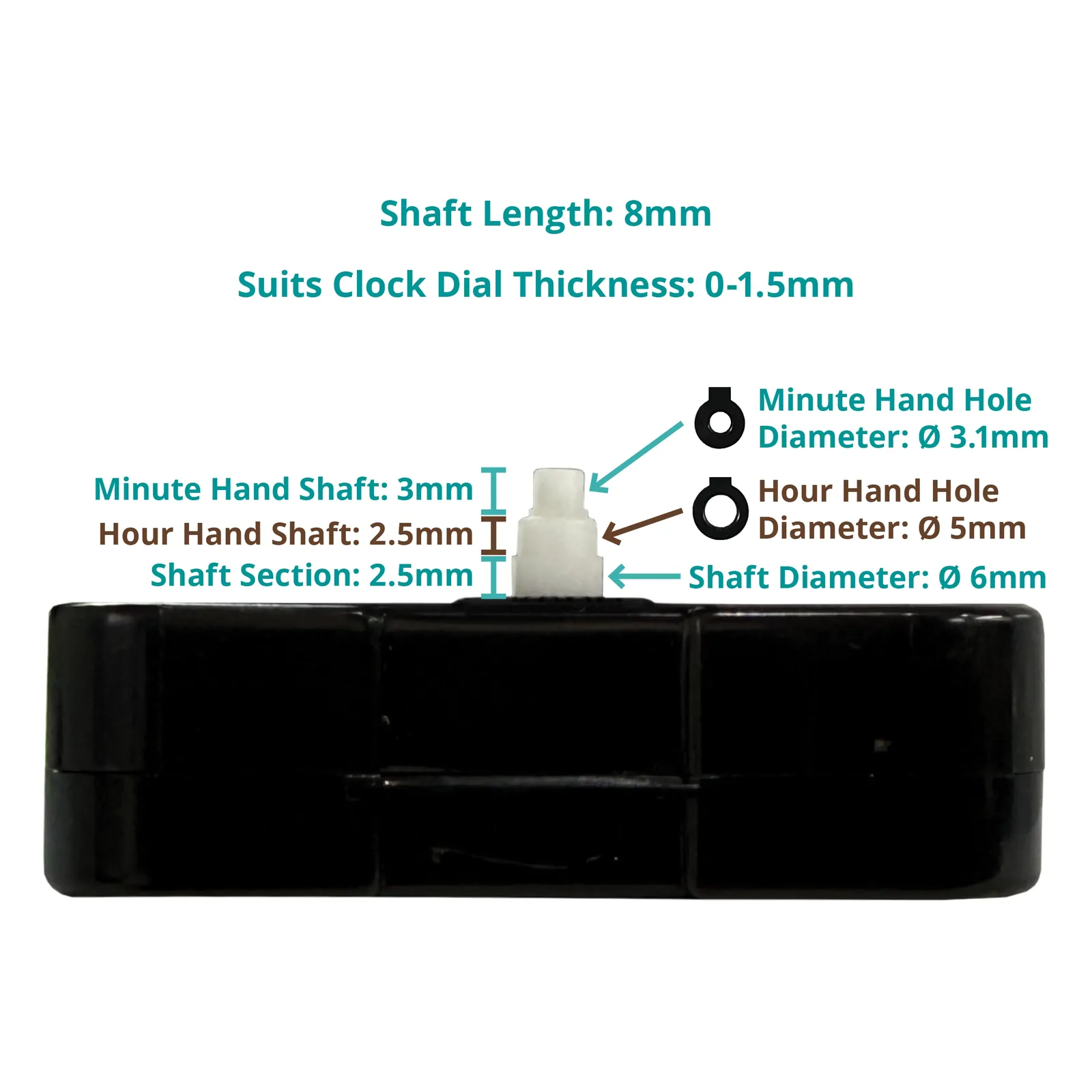

Hand Hole Dimensions (Collet)

• Minute: 3.1mm
• Hour: 5.0mm

Please Note: Hands or hanger are NOT included with this movement by default, however they are available to purchase seperately via the links below:

HANDS: These Press Fit movements are compatible only with our range of Press Fit Step Hands that have specific hand hole dimensions of 3.1mm and 5.0mm, as specified in the titles & product descriptions. Compatible hour/minute hands are available to view HERE. Compatible seconds hands are available to view HERE.

Metal Hanger is available HERE.

Important note: We cannot guarantee compatibility between your existing hands and our movements. To avoid any issues, be sure to gather accurate hand hole measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with this movement.

What Is The Difference Between A Standard Press Fit and A German Press Fit Movement?

The main difference between a standard press fit movement and a German press fit movement comes from the hand hole dimensions which have slightly different measurements. It is important to measure your existing hand hole dimensions prior to purchasing, to ensure you find the correct replacement. Please be sure to check the diameter of your dial hole and hand hole dimensions prior to purchasing to ensure you select the most suitable movement.

The Importance Of Getting Correct Measurements

In order to find a correct replacement, you will first need to gather a few measurements and information from your current movement. A model number alone does not provide enough information to replace a movement- you will also need to determine the following:

1. Type of movement/hands you are replacing (press fit, euro shaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

• If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
• If the hole has two straight sides and a rounded top and bottom, then your movement is a euro shaft movement
• If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your original hands may not be compatible with the replacement movement that you select. It is important that you measure the hand hole dimensions to confirm whether it is a match. If not, you can order replacement hands that will be compatible with your replacement movement. In addition, the total length of the hands are measured from the centre of the hole to the tip, not from end to end.

3. Total Shaft Length Of Your Current Movement

Measure the total shaft length of your old movement by measuring from the face of the movement to the very end of the shaft. This measurement is NOT just the threaded part of the shaft, it is the entire shaft. It is important to get accurate measurements especially if your clock had a lens. We also recommend measuring your dial thickness to ensure the replacement movement will be a suitable fit.

4. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.

Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
