Quartz Trigger Clock Movement (14mm Shaft)

Quartz Trigger Clock Movement

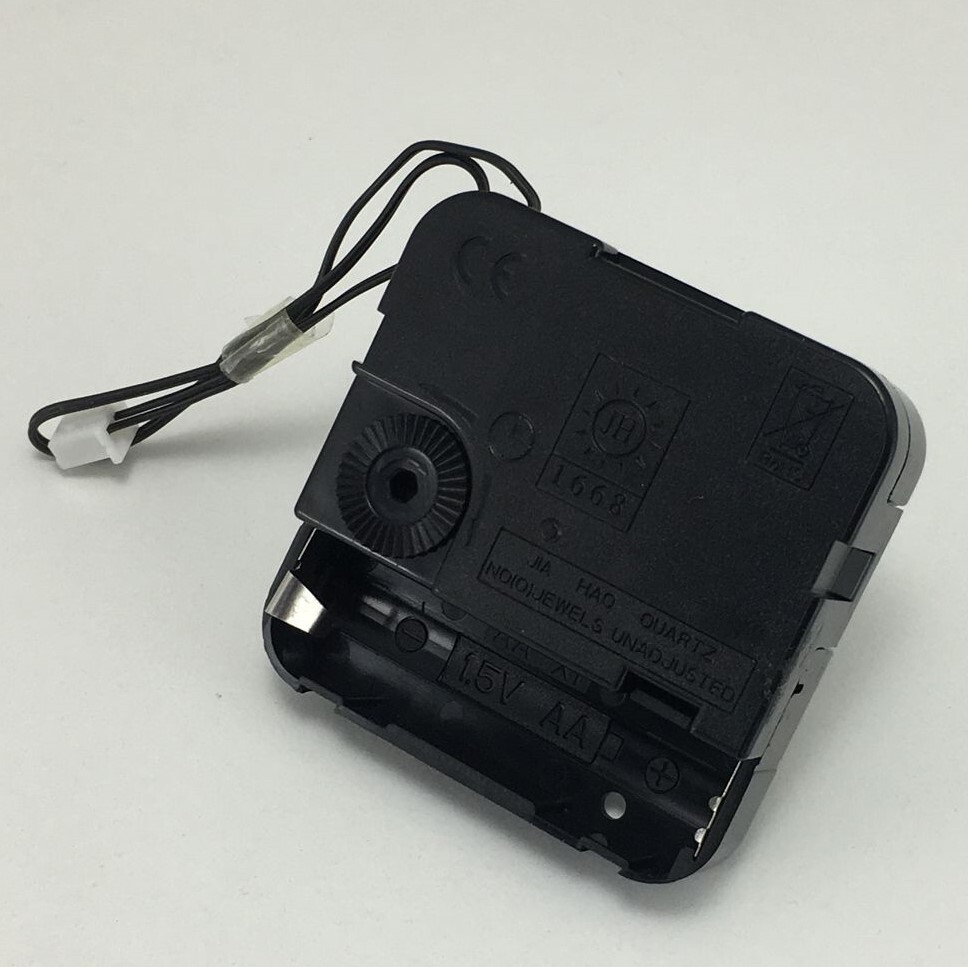

This quartz trigger clock movement is designed to create an electric pulse on the hour (trigger) to use with a chiming or music module. It features a step movement, which, if used with a seconds hand, will tick around the dial.

The movement has a total shaft length of 14mm and suits dials that have a dial thickness between 0-5mm. It has a press fit shaft (both the hour hand and minute hand push on).

Important note: We cannot guarantee compatibility between your existing hands and our movements. To avoid any issues, be sure to gather accurate hand hole measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with this movement.

Supplied With:

1 x quartz trigger clock movement (14mm shaft length, suits clocks with a dial thickness 0-5mm)

Step movement- if used, the seconds hand will tick around the dial

Press fit movement- Both the hour & minute hand will press on to the movement

Movement measures: 56mm x 56mm x 17mm (not including shaft)

Lead wires: 200mm length

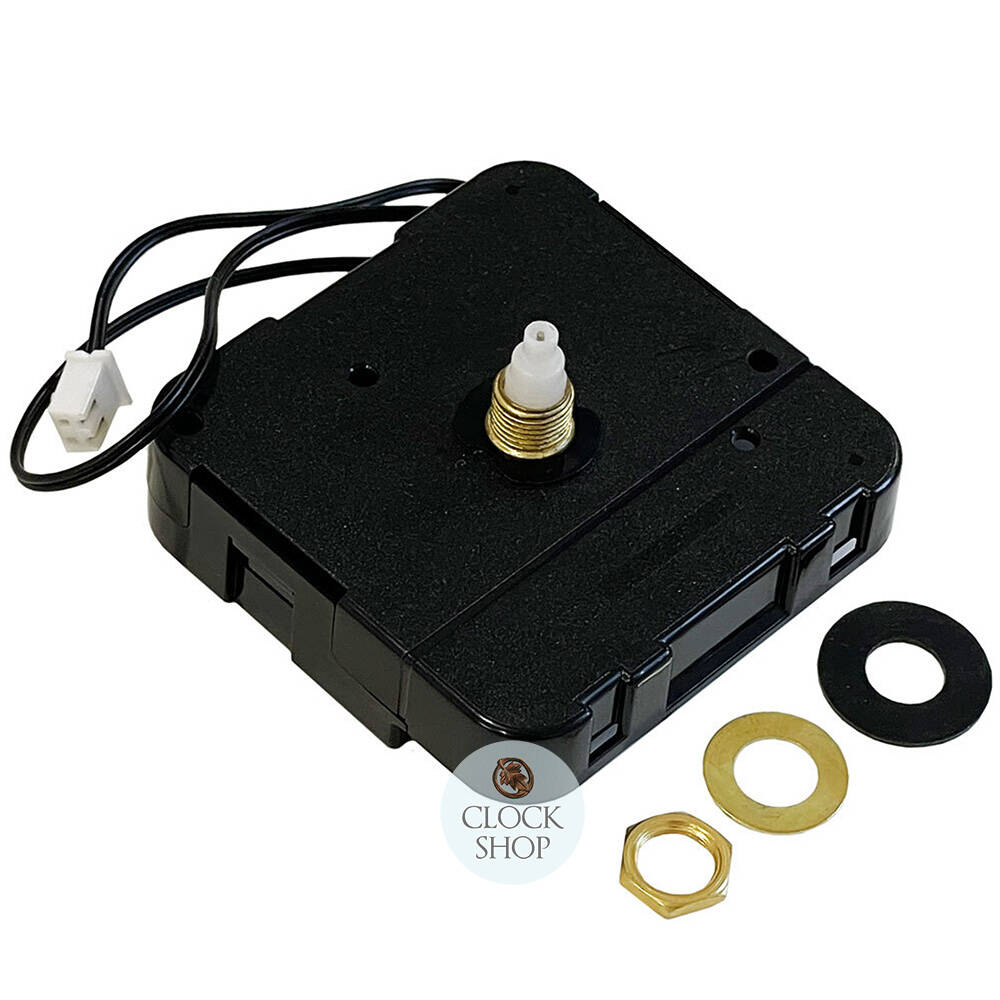

Fittings Include: (including rubber washer, brass washer and hex nut)

Weight: 50 grams

Material: ABS plastic

Movement requires a minimum dial hole diameter of 7mm

Requires 1 x AA Alkaline battery (LR6), not included

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.

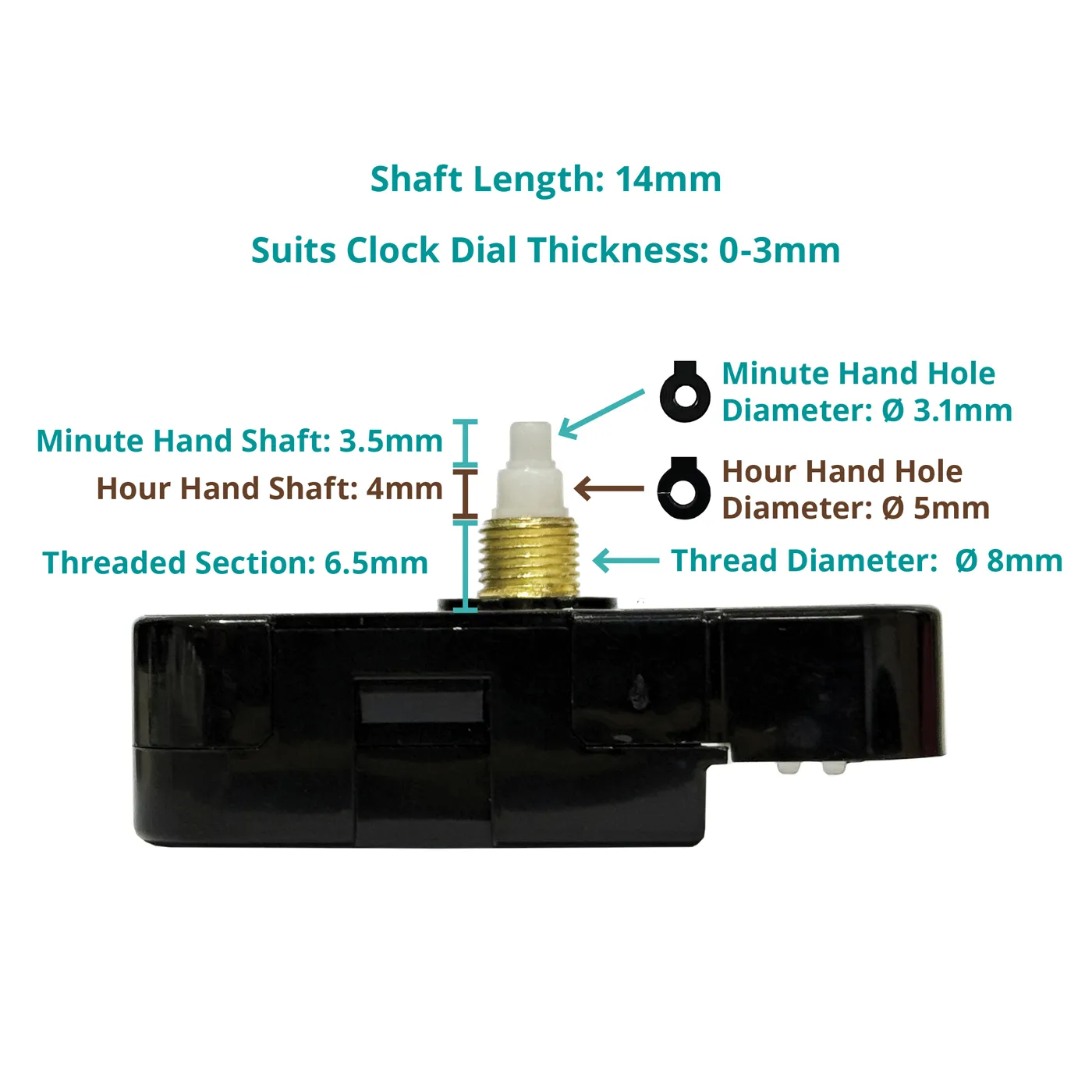

Hand Hole Dimensions (Collet)

• Minute: 3.66mm

• Hour: 5.55mm

Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
