Thermometer Movement (20mm Shaft)

Thermometer Movement

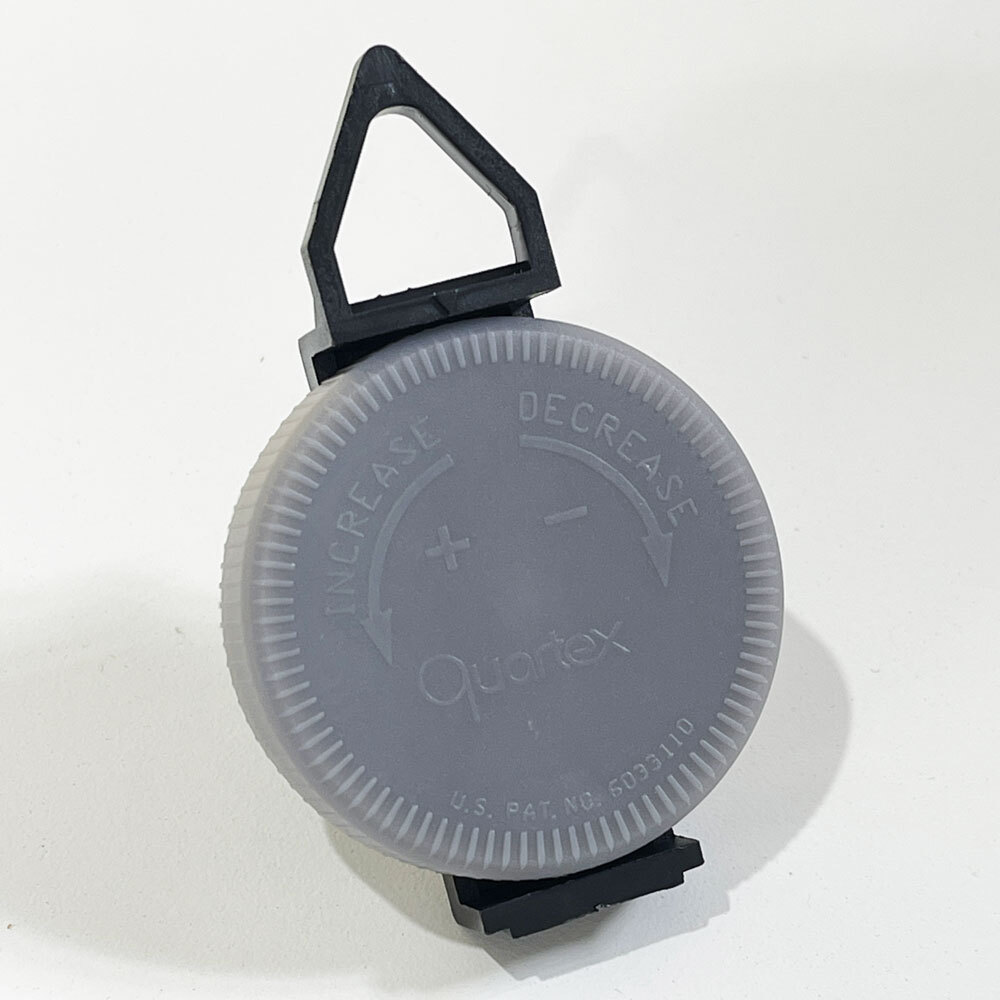

Please read the full description below carefully to ensure this thermometer movement is the right fit for your project before making a purchase. This thermometer movement is a specialised mechanism designed for DIY thermometer projects and replacements, which can be used with thermometer dials crafted from ceramics, wood, etc. It comes with a free black indicator hand, made from durable aluminum with a satin finish, measuring 17cm in length (and 12.70cm from tip to shaft hole). This indicator hand can be easily trimmed with scissors should it be necessary.

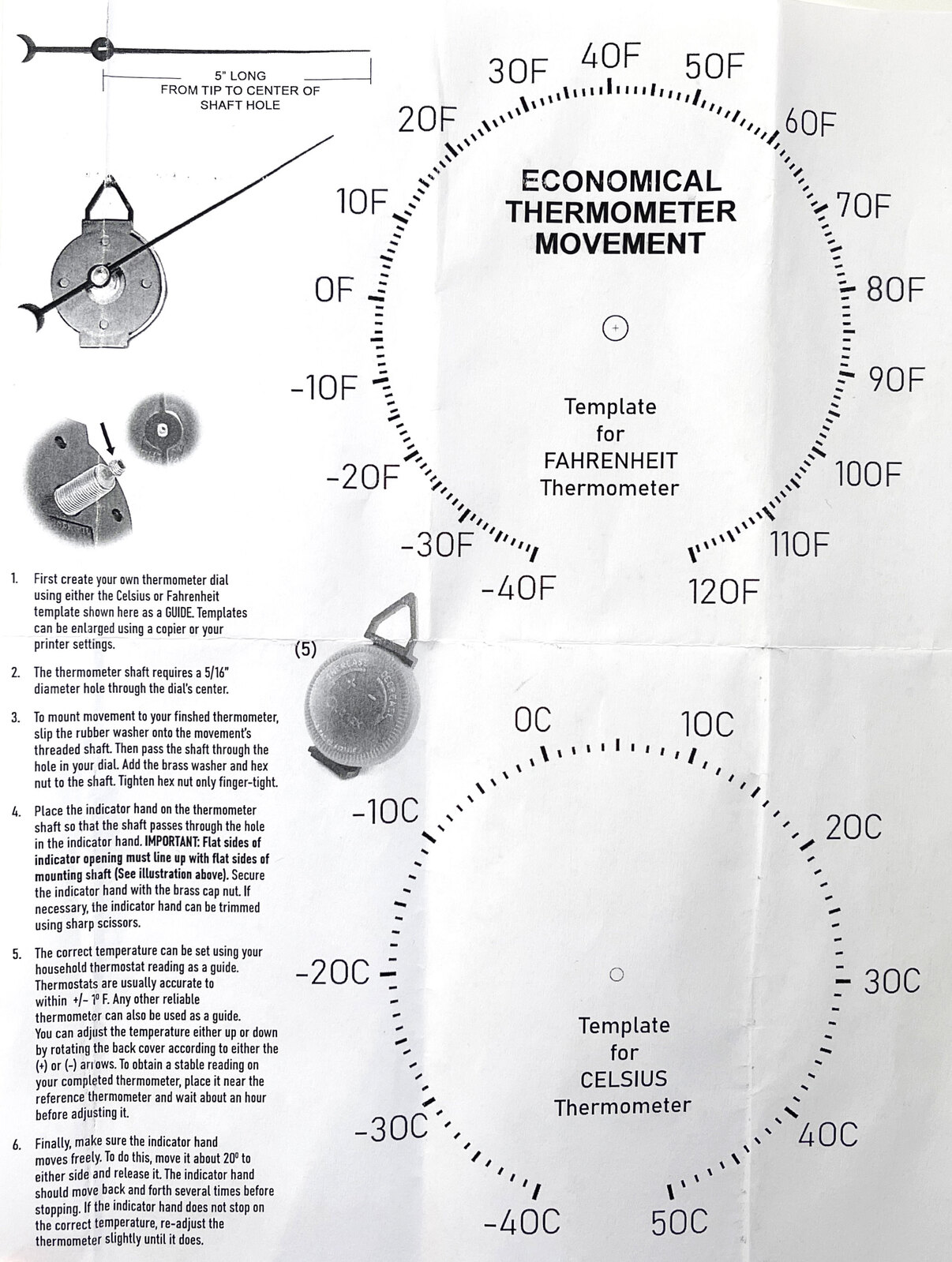

The movement has a total shaft length of 20mm and is compatible with thermometer dials that have a dial thickness of 0-12mm. The movement comes with temperature templates for both Farenheit and Celsius scales, and is compact in size, measuring only 5cm (diameter) x 8cm (height). It is centre shaft mounted.

It can be used indoors or outdoors, with an overall temperature range from -5 to 49 degrees Celsius that requires easy calibrating and setting.

Please note: This thermometer movement does not tell the time. It also does not require a battery.

Important note: We cannot guarantee compatibility between your existing hands and our movements. To avoid any issues, be sure to gather accurate hand hole measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with this movement.

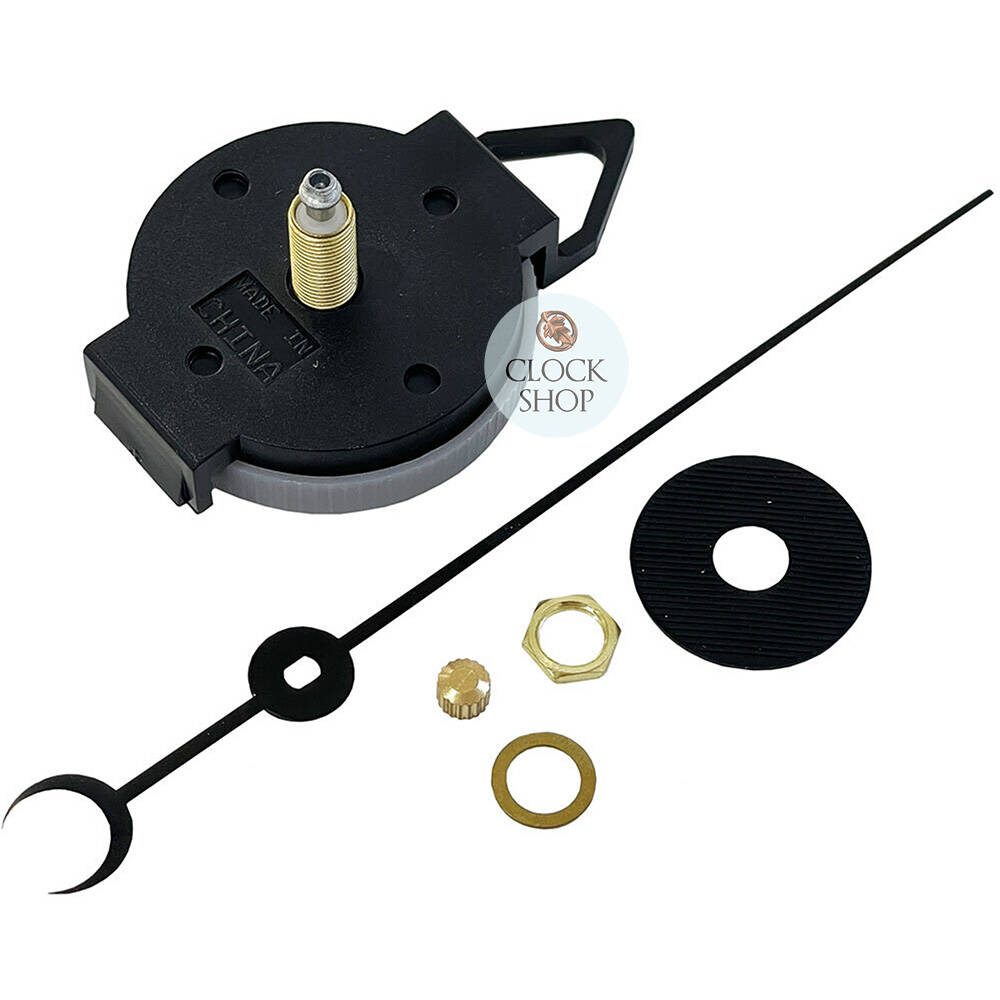

Included:

1 x thermometer movement (20mm shaft length, suits clocks with a dial thickness of 0-12mm)

Overall shaft length: 20mm

Movement measures: 5cm x 8cm

Material: ABS plastic

Temperature Range: -5 to 49 degrees Celsius

Supplied with: Black indicator hand made from aluminium

Supplied with: 1x pack of fittings (rubber washer, metal washer, hex nut, closed minute hand nut)

No batteries required

Disclaimer: The information provided serves as a guide only. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
